What is Spot Welding? The Complete Guide for 2026

Struggling with creating strong and precise welds? If yes! Spot welding is the solution right here. It helps you create clean and quick joints in minimal time. Whether you have plans to create car parts, metal projects, or home appliances, knowing the right welding method is crucial to getting the desired results.

In this article, we will discuss spot welding, covering its process, parameters, modern tools, advantages, disadvantages, and much more. So, keep reading!

What Is Spot Welding?

Spot welding is a type of welding in which you join two metals at specific points. You don’t weld the whole line; you just weld some specific small spots. Each spot has the ability to hold the metal sheets together. This method is common in workshops and factories, as it is a fast and reliable method of joining metal sheets together.

What happens is that you just place both the metal sheets on top of each other. These sheets are then pressed between two copper electrodes. These electrodes apply pressure on the sheets and pass electricity through them. And, metal resists the current. Due to this resistance, heat is produced at some contact points. This heat melts the metal at those points. And, when the current supply stops, the melted metal cools down and forms a firm joint.

Spot welding is common for home appliances, metal furniture, and car bodies. If we talk about a car door, the panel is held by hundreds of small, welded spots. Although a single spot of weld is small, it creates a very strong structure.

The best thing is that there is no use of filler wire or gas in spot welding. So, the process is simple and clean. Moreover, it reduces the wastage of material. And, you know, it is also a quick process; it is best for mass production.

Well, spot welding has some modern variations: TIG spot welding and Laser spot welding. When you want a cleaner finish and more control, you can use TIG spot welding. And when you need high accuracy and low damage due to heat, you can use laser spot welding.

The Working Principles of Spot Welding

Spot welding simultaneously uses pressure, heat, and electric current. These three elements work together to create strong joints. Once you understand the process, it becomes easy to operate and repeat.

Surface preparation

First, clean the surface to remove any rust, dust, or oil. You know, clean surfaces let the current flow more easily and create firm joints.

Positioning the materials

Now, lace both the sheets that you have to weld on top of each other. Keep in mind to align the hseets properly, it will help create accurate welds.

Electrode placement

Now, you have to place copper rods on both sides of the sheets. These electrodes touch the spot of the sheet that you have to weld.

Applying pressure

The rods press the sheets together. This pressure helps the sheets stay closer to each other during welding.

Passing electric current

Now, an electric current is passed through the electrodes and metal sheets. This current produces heat at the point of contact.

Holding time

At this point, stop the current but apply the pressure. The molten metal will cool down and solidify.

Electrode release

Now, release the electrodes from the metal sheets. The weld spot is done!

What are Spot Welding Parameters?

Basically, spot welding parameters are the settings that you have to set to get strong and quality welds. These settings should be adjusted carefully to avoid weak and damaged joints. In this section, we will discuss what those parameters are. Have a look;

Welding Current

Welding current is the current that we apply to generate heat at the welding spot. The higher the heat, the faster the metal will melt. But if the current is too high, it can cause burning or splashing. Moreover, if the current is too low, the weld can be weak and can break easily.

Welding Time

Welding time is the duration of the flowing current in the metal sheets. If you apply proper pressure, the electrodes will provide a stable current. This will create uniform heat all over the spots. If the current is low, it will cause sparks and poor contact. And, excess pressure also creates problems, like it reduces friction and producing less heat than required.

Electrode Tip Size and Shape

The shape of the electrode also matters the most. The size and shape of the electrode tip affect the size of the spot weld. If the tip is small, it will create a focused and deep weld. On the other hand, larger tips focus the heat on a larger area, forming bigger spots.

Material Type and Thickness

You know, different metals react differently to heat. If the metal is thin, then apply lease current for a short time. And, for thicker metals, you have to set higher settings. So, adjust the parameter according to the material type.

How to Set Proper Spot Welding Parameters

Well, if you want strong and clean welding spots, you have to adjust the settings carefully. Doing so will help you avoid weak welds, uneven joints, and burn marks.

Material Type and Thickness

First, consider the type of material you are going to weld. If the metal sheet is thin, it needs less heat, while thicker metals require a high temperature and a long time.

Welding Current

Welding current plays a role in controlling the welding heat. You can start with low heat, then increase gradually. Too high a current can burn the metal, and too low a current would create weak weld spots.

Welding Time

Welding time should be adjusted according to the material. Thin sheets can form strong weld spots in a minimum time, while thicker sheets require more time to make strong weld spots.

Electrode Pressure

Electrode pressure keeps the metal sheets tightly packed with each other. Low pressure can’t make strong welds and causes sparks.

Electrode Tip Condition

Tip shape should be clean and proper; it will improve the current flow, ultimately making strong welds.

Test Welds

Honestly, if we try settings on a scrap metal, it will give you sureity about the final results. On sample, check the shape and strength of the weld.

Spot Welding Process Steps

When you want strong and reliable spot welds, you should know the exact process. Each step is important to make the weld durable, clean, and precise. Skipping any step can lead to uneven joints, sparks, or weak joints. Let’s discuss the process in detail.

Step 1: Clean the Metal Surfaces

First, clean the metal before welding. Remove the dust, dirt, and grease from the metal sheets. If the surface is dirty, it will reduce the electrical contact nd weak welds. So, use a wire brush, sandpaper, or a cleaning solvent to make the sheets shiny and smooth.

Step 2: Position the Metal Sheets

Now, pick the metal sheets carefully. Align them properly. Alignment should be proper; otherwise, sheets can shift during welding.

Step 3: Place the Electrodes

Okay, now place the copper electrode on both sides of the metal sheets. And, make sure that the electrode tip touches the exact spot on the sheet.

Step 4: Apply Electrode Pressure

Now apply pressure on the sheets through the metal sheets. The right pressure will keep the sheets together and build up the heat at the exact spot. Too much pressure can cause sparks, and too low pressure will reduce the heat.

Step 5: Pass Electric Current

Now, apply an electric current through the copper electrodes. Due to the current, metal will create resistance, which will produce heat. This heat will melt the metal and form a small molten pool, which is called a weld nugget.

Step 6: Hold While Cooling

Until the molten metal gets cool, keep the pressure stable. It will solidify the joint properly and make it strong. If you cool the weld too quickly or release the pressure, it will form a weak weld.

Step 7: Release the Electrodes

Alright! Now lift the electrodes carefully. Inspect the weld spots. You know, a good weld looks round, smooth, and firm. If you feel the need for any adjustments, adjust the settings and test on scrap metal before applying to the final work.

What Materials Can be Welded Using Spot Welding?

With the help of spot welding, you can weld many types of materials. Basically, it works best on those materials that are the best conductors of electricity. So, you must understand which type of material will be best to avoid weak welds, wasted time, and damage to the welding tool..

Mild Steel

For spot welding, mild steel is one of the most common materials that is widely used. The best thing is that this material heats up evenly, melts quickly, and forms firm joints. You will see this material in metal furniture, car panels, and small appliances. Well, if you are a beginner in spot welding, mild steel can be the best option for you.

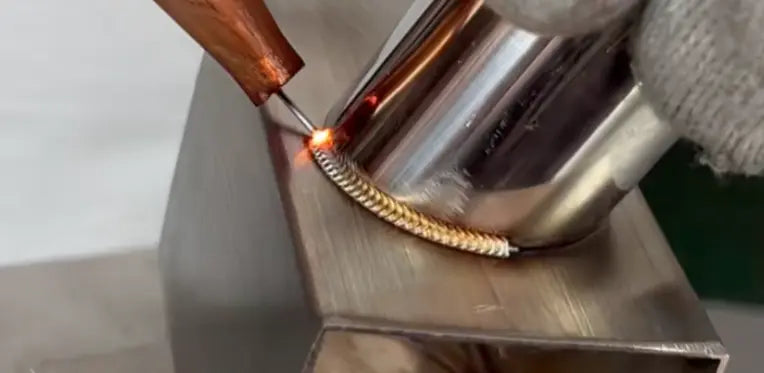

Stainless Steel

Stainless steel is also considered a good material for spot welding. One important thing you should know here is that stainless steel resists melting, so it needs higher heat than required from mild steel. You will see it in medical tools, kitchen equipment, decorative items, etc. If you set the parameters properly, you can get a strong and clean spot weld with this metal.

Nickel Alloys

Some nickel alloys are also famous for spot welding. These metals are resistant to chemicals and have good strength. That’s why they are ideal for electronics, batteries, and aerospace components. Nickel alloys react differently to heat, so settings should be done carefully.

Aluminum

Spot welding of aluminium is also possible. But it is trickier to some extent. As aluminium is a good conductor of electricity, you have to pass a high current for a short time. You know, laser spot welding offers better control and precision; therefore, most beginners prefer it.

Other Considerations

If we talk about other metals, like copper, brass, and others, they are hard to weld. And, they need special equipment and advanced techniques, like TIG  welding, etc.

Applications of Spot Welding

Due to the speed, strength and reliability of the spot welds, spot welding is being used in many industries. In this section, we will discuss how spot welding can help you make the joints.

• Automotive Industry

In car manufacturing, spot welding is essential. You can weld car doors, hoods, frames, and other body panels. Generally speaking, a single can have hundreds of weld spots, yes. Well, spot welding ensures that the parts stay firm while keeping the speed of the operation fast.

• Home Appliances

Many appliances are also prepared with the help of spot welding. For example, washing machines, ovens, refrigerators, and air conditioners. The thing which makes it best for home appliances is that spot welding can create clean, strong, and durable joints.

• Electronics and Batteries

Spot welding is also used to weld electronics, for example, battery packs. You know, small metal sheets can join quickly and precisely; therefore, spot welding is used to make fast, strong joints.

• Metal Furniture and Cabinets

If we talk about metal furniture and cabinets, they are also being welded by spot welding. For example, shelves, filing cabinets, and lockers can be easily welded by this method.

• Construction and Metal Fabrication

The construction industry is also getting benefits from spot welding. They can make steel panels, metal gates, and other structures with spot welding. It offers you consistent quality and quick assembly. Therefore, it is best for builders and fabricators to make reliable products efficiently.

Advantages of Spot Welding

Spot welding has a lot of advantages, which is why it is popular in industries. In this section, we will discuss the common benefits of spot welding. Have a look;

• Fast and Efficient: Spot welding is very fast. The entire process happens in just seconds. So, you can create hundreds of welds in a very short time.

• Strong and Reliable Joints: Although welds are small, they create strong joints. Moreover, if you set the parameters properly, you can make ideal structural components.

• Clean Process: It is also wort
